홈/쇼핑/Elegoo/Elegoo Saturn 4 Ultra 16K 3D Printer
ELEGOO · Elegoo 3D Printers

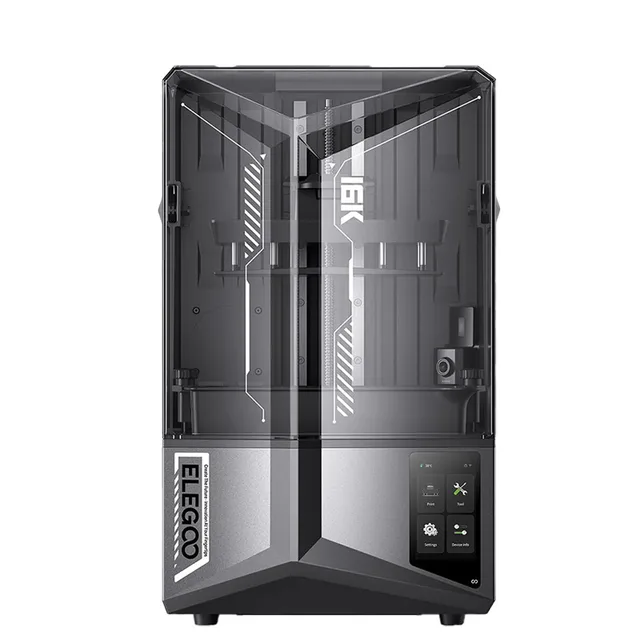

Elegoo Saturn 4 Ultra 16K 3D Printer

5 sold
Elegoo태국 Elegoo 공식 대리점
Elegoo Elegoo Saturn 4 Ultra 16K 3D Printer
Elegoo logo
฿ 17,000VAT 포함

주요 사양

211.68×118.37×220 mm · MSLA resin · 10" 16K mono LCD · 14×19 µm · 150 mm/h · heated tank 30 °C · auto-levelling
1
🏬 Availability
Online warehouse · ships nationwide✓ Ready to ship
True Digital Park✓ In store
Seacon Bangkae✓ In store
Central Sriracha✓ In store
  • 🚚 태국 전역 무료 배송 또는 지점 픽업
  • ↩ 미사용 시 7일 이내 반품 가능 · 조건 보기
212×118×220mm
출력 영역

Elegoo Saturn 4 Ultra 16K — 놓치고 있던 디테일을 확인하세요

10인치 16K 모노 LCD는 모델 아래에 14 × 19 µm 픽셀을 배치하여 피부 질감, 체인 메일 및 미세한 글자가 계단 현상 없이 선명하게 나옵니다. 틸트 릴리스는 인쇄 속도를 빠르게 유지하고, 가열된 레진 탱크는 레진을 잘 유지하며, 자동 레벨링은 개봉 후 몇 분 안에 인쇄를 시작할 수 있음을 의미합니다.

주요 특징

  • 10인치 16K 모노 LCD — 15,120 × 6,230 픽셀, 14 × 19 µm XY 해상도.
  • 30 °C 스마트 탱크 가열 — 따뜻한 레진은 더 잘 흐르고 더 잘 접착되어 기포와 레이어 분리를 줄입니다.
  • 틸트 릴리스, 최대 150 mm/h — 고속 모드에서 레이어당 약 5.5초로 Saturn 3 Ultra보다 약 두 배 빠릅니다.
  • 자동 레벨링 — 한 번의 탭으로 종이 심이나 수동 조작이 필요 없습니다.
  • 챔버 조명이 있는 AI 카메라 — 빈 플레이트 또는 휘어진 모델을 감지하고, 밤낮으로 타임랩스를 기록합니다.
  • 스마트 기계 센서 — 레진 잔여물이 화면을 손상시키기 전에 감지하고, 레진 부족 또는 레벨링 실패 시 경고합니다.
  • 211.68 × 118.37 × 220 mm 빌드 볼륨 — 전체 흉상 또는 미니어처로 가득 찬 플레이트를 위한 공간.

따뜻한 레진, 더 나은 인쇄

금속 탱크는 레진을 30 °C로 가열하고 유지합니다. 점도가 떨어지고 각 레이어가 이전 레이어에 제대로 젖어들며, 차가운 아침에 차가운 레진으로 인해 발생하는 실패가 대부분 사라집니다.

타협 없는 빠른 속도

틸트 릴리스는 각 레이어를 똑바로 위로 당기는 대신 각도로 벗겨내어 흡입력을 낮게 유지합니다. 이를 통해 프린터가 얇은 벽과 미세한 핀을 손상시키지 않고 빠르게 작동할 수 있습니다.

작업 감시

업그레이드된 카메라에는 자체 조명이 있어 모니터링이 실내 조명에 의존하지 않습니다. 빈 빌드 플레이트와 휘어짐을 감시하며, 타임랩스 결과물은 공유할 준비가 되어 있습니다.

내장된 안전 기능

LED 온도가 80 °C를 초과하면 인쇄가 자동으로 일시 중지되고, 전원 손실 복구는 작업이 중단된 지점부터 다시 시작하며, 한 번의 탭으로 자체 테스트를 통해 긴 인쇄에 레진을 사용하기 전에 기계를 확인합니다.

일상적인 사용을 더 쉽게 만드는 디테일

퀵 릴리스 미끄럼 방지 빌드 플레이트, 이중 주입구가 있는 레진 탱크, 드립 트레이, 교체 가능한 잠금 나사, 문제 없는 접착을 위한 레이저 각인 플레이트 표면, PFA 이형 필름, 9H 강화 유리 LCD 보호대.

연결된 워크플로우

내장된 듀얼 밴드 Wi-Fi는 여러 기기에서 클러스터 인쇄를 지원합니다. EL3D-4.0 시스템은 OTA 업데이트를 지원하고, 12개 언어를 지원하며, 단일 타협 값에 만족하는 대신 높이별로 노출을 조정할 수 있는 섹션 기반 노출을 제공합니다. ELEGOO SatelLite 또는 Chitubox에서 슬라이싱하세요.

자주 묻는 질문 · FAQ

자주 묻는 질문

Elegoo Saturn 4 Ultra 16K 3D Printer 가격은 얼마인가요?+

Print My Design에서 Elegoo Saturn 4 Ultra 16K 3D Printer의 가격은 ฿17,000(VAT 포함)입니다. 재고가 있으며 매장별 재고는 이 페이지에서 확인할 수 있습니다. 태국 전역 무료 배송입니다.

What is the build volume and resolution of the Elegoo Saturn 4 Ultra 16K?+

211.68 × 118.37 × 220 mm, with a 10-inch 16K mono LCD (15,120 × 6,230 pixels), 14 × 19 µm XY resolution and 0.01–0.2 mm layers.

How is it different from the 12K Saturn 4 Ultra?+

The 16K panel has 15,120 × 6,230 pixels at 14 × 19 µm, against 19 × 24 µm on the 12K. It adds the 30 °C smart heating tank, the new AI camera with a chamber light, and built-in Wi-Fi instead of an external antenna. The build volume is slightly smaller: 211.68 × 118.37 × 220 mm against 218.88 × 122.88 × 220 mm.

How fast does it print?+

Up to 150 mm/h with tilt release, or about 5.5 s per layer in fast mode with Chitubox defaults (2.5 s exposure). Elegoo rates it twice as fast as the Saturn 3 Ultra, and you can switch between fast and slow modes.

Which resins can I use?+

405 nm UV resins for LCD printers. Elegoo publishes starting settings for this model across its own Standard, ABS-Like, Water Washable, 8K, Plant-based, Tough and Dental resins. For other brands, run an exposure test first.

Do prints need washing and UV curing?+

Yes. Prints come off the plate coated in uncured resin. Wash them in IPA, or water for water-washable resin, let them dry, then UV-cure them. The ELEGOO Mercury 3.0 Plus Wash and Cure does both steps in one machine.

Is it suitable for beginners?+

Yes. It levels itself, runs a self-test, heats the resin automatically, and its camera and sensors warn about an empty plate, a warped model or low resin. Beginners still need to learn supports, safe resin handling, and washing and curing.

Should I choose the Saturn 4 Ultra 16K or the Jupiter 2 16K?+

Choose the Saturn 4 Ultra 16K for detail and speed: 14 × 19 µm and up to 150 mm/h. Choose the Jupiter 2 16K for big parts: 302 × 162 × 300 mm, 20 × 26 µm and automatic resin feeding. The Jupiter SE uses a 6K screen (51 µm) with a 277.848 × 156.264 × 300 mm build volume.

Is Print My Design an official Elegoo distributor?+

Yes. Print My Design (Septillion Co., Ltd.) is an official distributor of Elegoo in Thailand. Printers carry a Thai warranty, with after-sales support from our Thai team.

Can my company get a full tax invoice?+

Yes. Companies can request a full tax invoice by giving the company name, address and tax ID when ordering.

Where can I buy the Saturn 4 Ultra 16K?+

Order online on this page, or buy through our True Digital Park, Seacon Bangkae or Central Sriracha branch.
