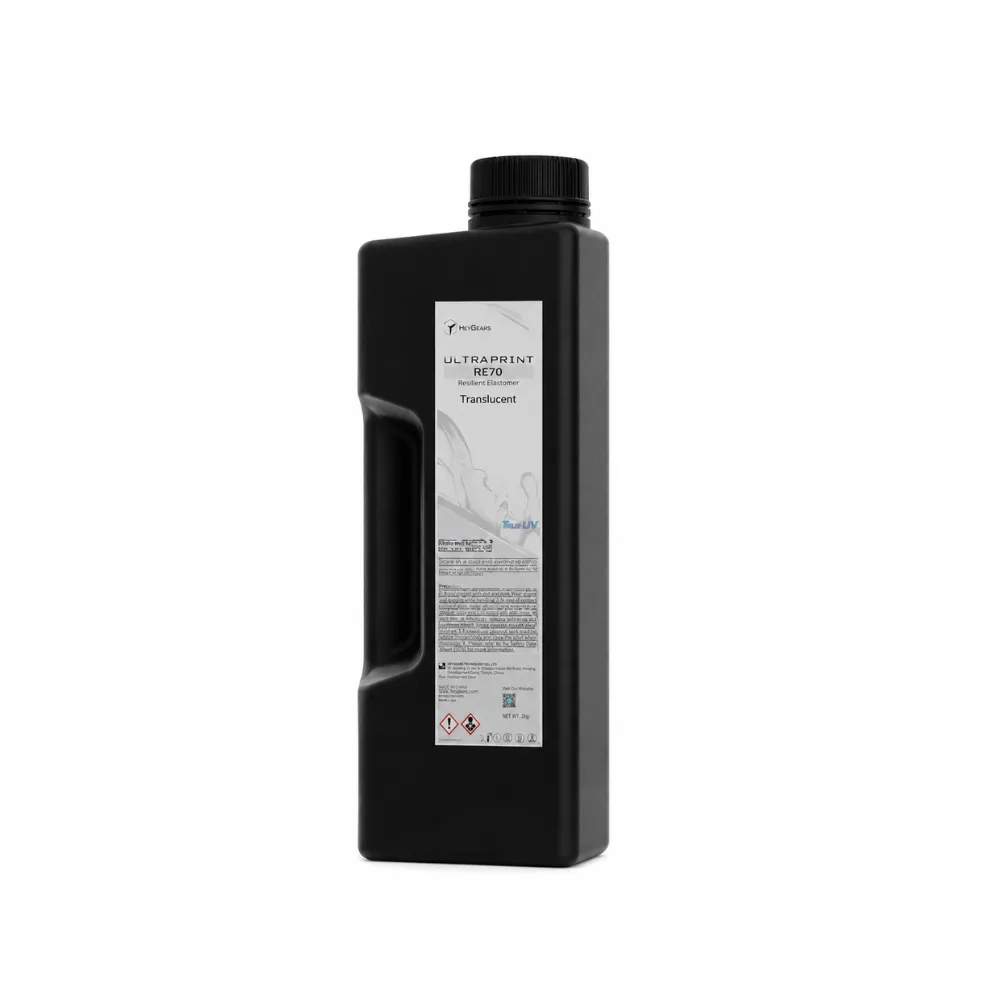

HeyGears UltraPrint-Production Transparant 2000g (RE70)
HeyGears Resilient Elastomer RE70 — Translucent is a production-grade elastomer material with high elasticity and tear resistance. It has passed biocompatibility tests, proving its skin-friendly properties. It is ideal for mass-producible elastomer applications, including footwear, damping parts, flexible tools, wearables, electronics and medical anatomical models. Highlights: 370% elongation at break, 67% rebound resilience, high tear resistance, skin-safe. Compatible with HeyGears Reflex 2 / Reflex 2 Pro / Reflex / Reflex Turbo resin 3D printers.
| Elongation at Break | 370 % | Tensile Strength | 22 MPa |
| Tear Strength | 68 N/mm | Rebound Resilience | 67 % |
| Compression Set | 15 % | Hardness | 69 Shore A |
| Viscosity | 4380 mPa·s | Specification | 2000 g / bottle |
Data from HeyGears Lab; average values with ±10% deviation. Color: Translucent. Net weight: 2000 g.
Resin is a light-sensitive liquid that an LCD/MSLA or SLA printer cures layer by layer with 405 nm light. It gives far finer detail and smoother surfaces than filament, which is why it is the standard for figures, jewellery and dental work.
Standard resin suits models and figures; ABS-like resin is tougher for functional parts; water-washable resin is the convenient choice at home; flexible, high-temperature, castable and dental lines are specialist materials chosen per job.
Use a resin printer whose screen size and resolution match the part — ELEGOO Mars and Saturn series for general work, Formlabs or HeyGears professional machines for dental and engineering parts. Take exposure settings from the printer's profile for the resin brand.
Wear nitrile gloves and work with ventilation. Wash parts in IPA or water as the resin type requires, then cure fully under UV. Store resin in its opaque bottle away from sunlight and heat.
