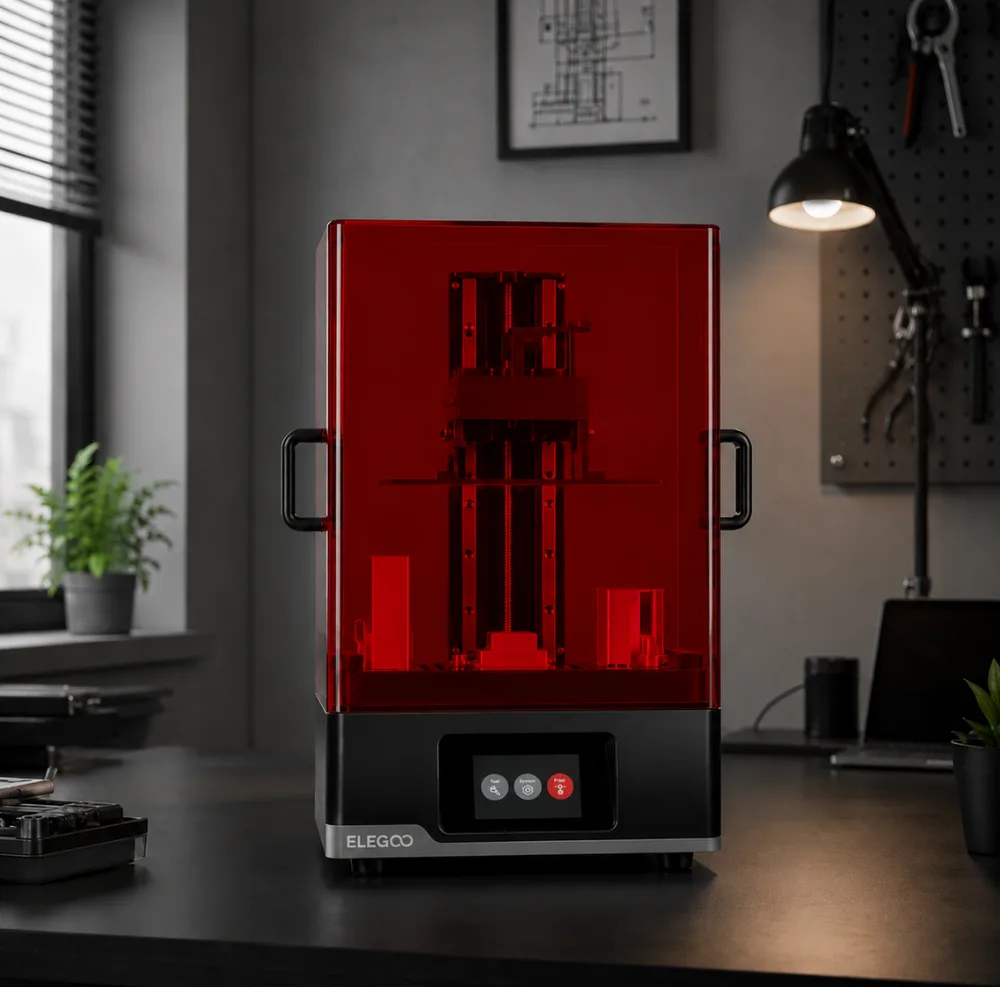

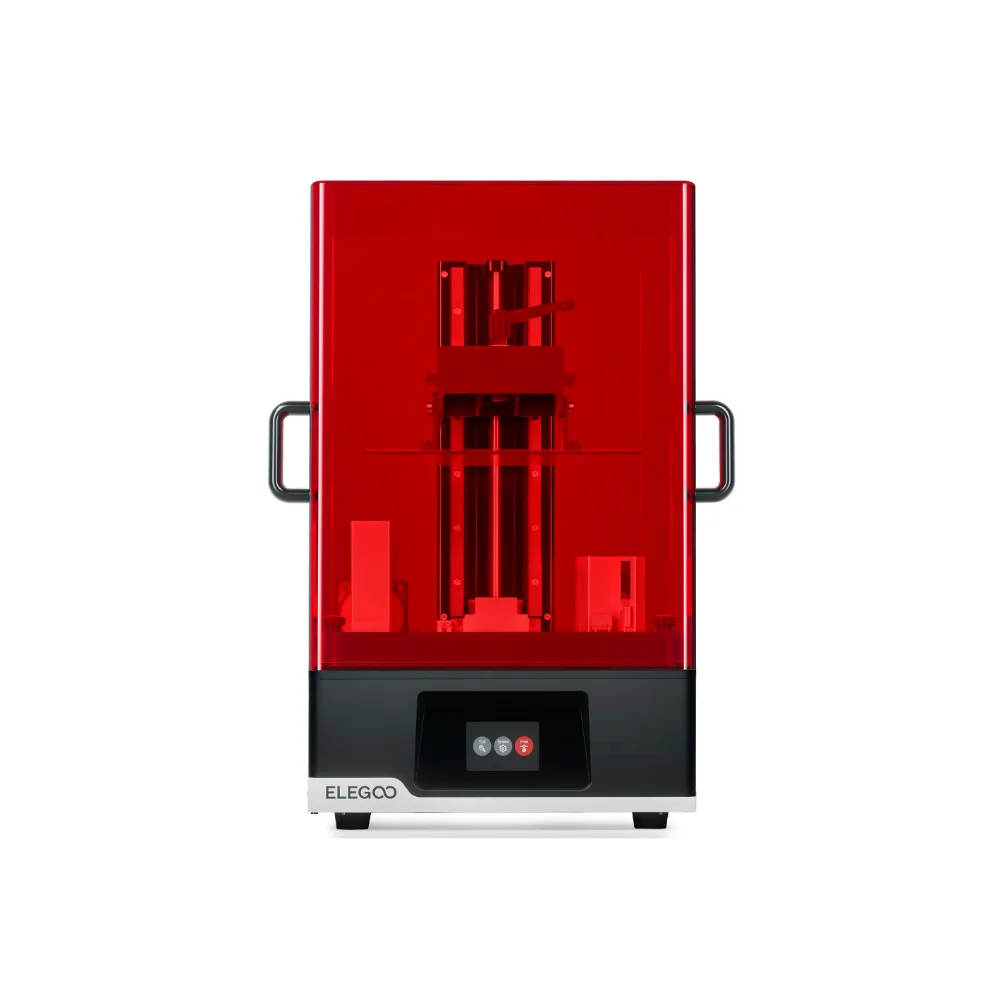

ELEGOO Jupiter SE — a large-format resin 3D printer with a 12.8-inch 6K Mono LCD, 51 μm XY resolution, automatic resin feeding & recycling, a spacious 277.848 × 156.264 × 300 mm build volume, 4-point effortless leveling, and an upgraded USB air purifier.
Jupiter SE features a 12.8-inch 6K mono LCD with a resolution of 5448 × 3064 and 51 μm XY precision, enabling you to print models with stunning details and exceptional clarity.
With a build volume of 277.848 × 156.264 × 300 mm (10.94 × 6.15 × 11.81 in), Jupiter SE provides ample space for more ambitious projects. You can print larger models or multiple parts in a single batch, making it ideal for professional or commercial use.
Jupiter SE is designed with an automatic resin feeding and recycling device that ensures a continuous supply of resin during the printing process. Automatic resin recycling ensures that unused resin is collected and recycled for future use, reducing waste and saving you money.
The printer adopts a COB + refractive light source that reduces light dispersion and provides uniform and consistent light exposure, resulting in sharper details, smoother final prints, and accurate dimensions.
There are cooling fans and heat-conducting copper tubes on both sides of the COB light source for efficient heat dissipation, maintaining a stable temperature during printing to extend the service life of the printer.
Jupiter SE is compatible with Voxeldance Tango and ChituBox — choose the slicing tool that fits your needs. Stable Movement Structure — the Z-axis dual linear guide rail with 0.02 mm accuracy ensures stable, precise Z-axis movement. User-Friendly Design — the build plate has a 4-point leveling system and laser-engraved surface for excellent adhesion, with no need to re-level after leveling once; the rotary handle makes installing and removing the build plate easy.
| Printing Technology | MSLA | LCD Screen | 12.8-inch 6K Mono LCD |
| Build Volume | 277.848 × 156.264 × 300 mm | XY Resolution | 51 μm (5448 × 3064) |
| Light Source | COB + Refractive Light Source (405nm) | Z-axis Accuracy | 0.02 mm |
| Layer Thickness | 0.01–0.2 mm | Printing Speed | Max 70 mm/h |
| Operation Screen | 3.5-inch resistive touch screen | System | EL3D-3.0.1 |
| Slicer Software | ChituBox & Voxeldance Tango | Connectivity | USB |
| Resin Management | Auto resin feeding & recycling | Air Purifier | Upgraded USB air purifier |
| Power Requirements | 100-240V 50/60Hz, 24V 7.5A | Printer Dimensions | 479.9 × 377.4 × 657.5 mm |
| Net Weight | 19.5 kg | Gross Weight | 26.6 kg |
Jupiter SE 3D Printer · USB Air Purifier · Build Platform · Resin Tank · Funnel · Auto Resin Feeding Main Module · Bottle Cap Module ×2 · Cover Handle ×2 · Mask & Gloves · Scraper · U Disk · Adapter · Backup Screws · Tool Kit · User Manual.
