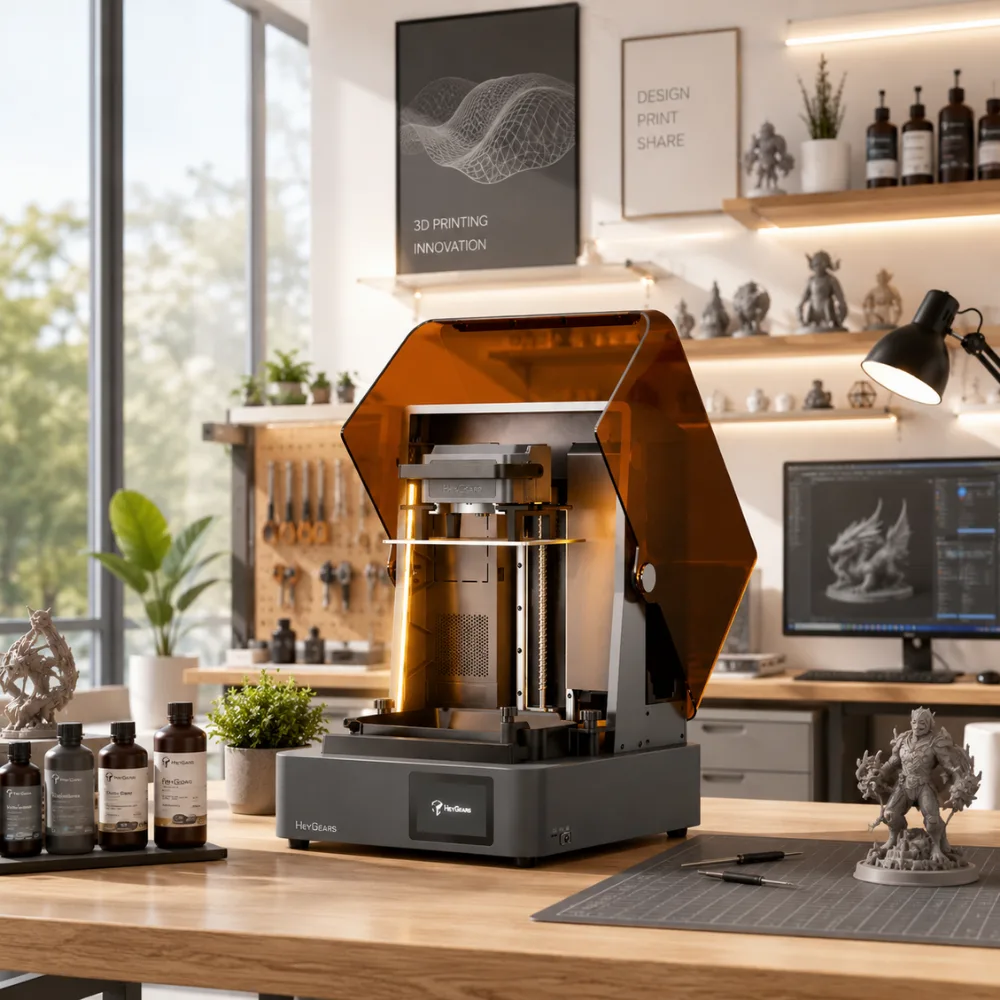

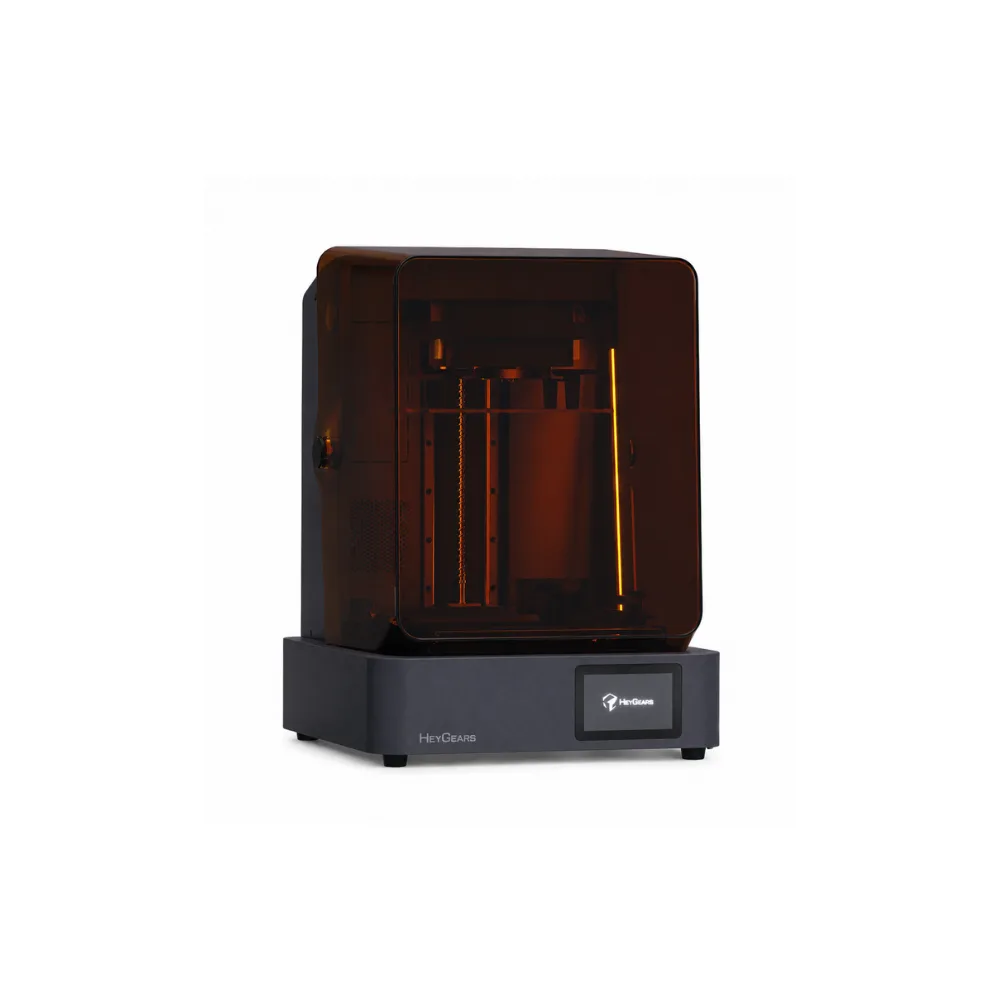

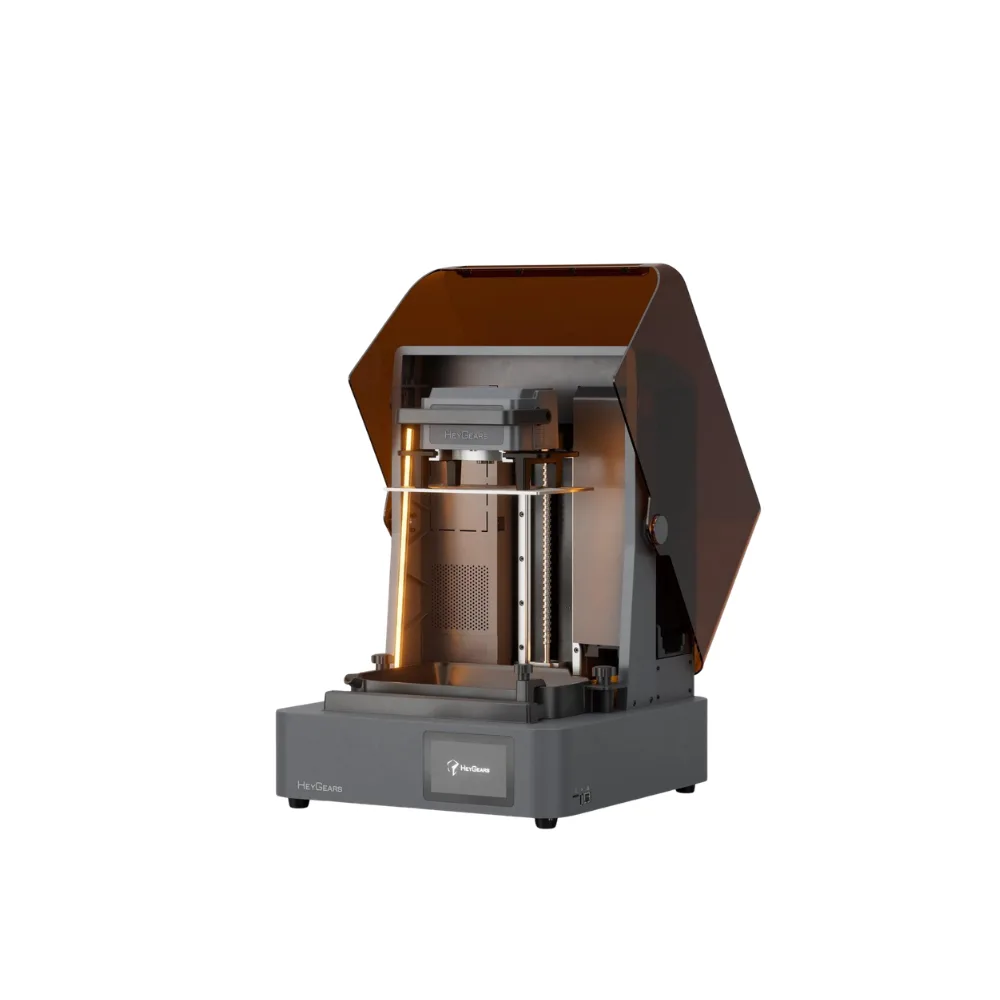

HeyGears UltraCraft Reflex 2 — a complete rapid-production resin 3D printer for creators and small-to-medium studios. Powered by HeyGears' pioneering 161 OptiZone Light Engine, an upgraded 10.7-inch 6K Amber Screen Pro, and a suite of intelligent, hands-off features, the Reflex 2 delivers precise, reliable, high-throughput MSLA printing.
An array of 161 individually controllable mini-LEDs, each adjustable for activation and brightness. With Pulse Width Modulation (PWM), light reaches the screen more uniformly for exceptional surface finish and edge sharpness.
An effective lifespan of over 6,000 hours* thanks to enhanced UV resistance. AI-powered MASK calibration across 86,020 zones compensates for light variation to achieve ≥94% light uniformity and print accuracy of ≤0.05 mm. The screen is modular for effortless replacement.
A die-cast unibody base eliminates cumulative tolerances and boosts rigidity, while the upgraded C5-grade Z-axis module keeps layer positioning error within 2 μm (tested at 50 kg load over 10,000 runs). Dynamic Motion Algorithm 3.0 evaluates each layer and selects from 18 motion-control profiles for fast, stable prints.
Optional scraper-assisted heating keeps resin at the optimal temperature (±1 °C) and cuts heat-up time by up to 68%. A floating build platform auto-levels within 0.15°, force sensors detect residue as small as 0.15 mm and can auto-stop on failure, and automatic resin refill keeps long jobs running unattended. Powerful thermal dissipation holds a stable 31.2–35 °C to extend component life.
With 161 light zones and more stable hardware, the Reflex 2 unlocks a broad range of high-performance resins across the full Reflex Series materials library — including PAC10, PAU11, PAT10, PAP10, PAS10, PAH270 and PAU20. Open Material Mode is supported.
| Printing Technology | LCD (MSLA) |
| Screen | 10.7-inch 6K Amber Screen Pro |
| Light Source | 161 OptiZone Light Engine (161 mini-LEDs) |
| Optical Wavelength | 385+ nm |
| Build Volume | 230 × 144 × 230 mm (9.1 × 5.7 × 9.1 in) |
| XY Resolution | 40 μm |
| Accuracy | ±20 μm |
| Layer Thickness | 20–250 μm |
| Z-axis Module | C5 grade · ≤2 μm repeat positioning |
| Light Uniformity | ≥94% (86,020-zone MASK calibration) |
| Resin Heating | Optional scraper-assisted heating |
| Residue Detection | 0.15 mm |
| Frame | Die-cast unibody base |
| Connectivity | USB · Wi-Fi · LAN (RJ-45 Ethernet) |
| Resin Refill | Automatic |
| Rated Power | 350 W |
| Voltage | 100–240 V · 50/60 Hz |
| Machine Size | 430 × 445 × 605 mm |
| Weight | 25.5 kg |
Reflex 2 3D Printer · Resin Tank · Build Platform · Regular Scraper · Spatula · Part Removal Tool · T-Type Wrench · Resin-Refill Lid · Power Cord · Quick Start Guide · After-sales Service Guide.
*Based on ~16 hours of daily use. Data sourced from HeyGears Lab.
LCD (MSLA) resin printing with a 10.7-inch 6K Amber Screen Pro and HeyGears' 161-zone OptiZone Light Engine for uniform, high-detail curing.
230 × 144 × 230 mm (9.1 × 5.7 × 9.1 in), with 40 μm XY native resolution and ±20 μm accuracy.
No. The floating build platform auto-levels within 0.15°, eliminating gaps of up to 240 µm — setup is effectively hands-free.
The full Reflex Series materials library, including PAC10, PAU11, PAT10, PAP10, PAS10, PAH270 and PAU20. Open Material Mode is also supported.
Over 6,000 hours of printing — about a year at ~16 hours per day — with strong UV resistance, and it is modular for easy replacement.
With the optional heating scraper it warms resin to the optimal temperature (±1 °C) and cuts heat-up time by up to 68%. Sold by Septillion, the authorized reseller, with local warranty and support.
