HeyGears HeyGears UltraPrint Modeling White 1kg (PAH270)
HeyGears logo
HEYGEARS · Authorized dealer

HeyGears UltraPrint Modeling White 1kg (PAH270)

High-temp tooling resin · White · 1 kg · 270 °C HDT · Pulsing Release Module 2 required

฿ 3,531incl. VAT
/ rolls
Only 1 left — ready
Total · 1 rolls฿3,531
1
🏬 Availability
Online warehouse · ships nationwide✓ Ready to ship
True Digital ParkOut of stock
Seacon BangkaeOut of stock
Central SrirachaOut of stock

HeyGears UltraPrint-Molding PAH270 — White, 1 kg

PAH270 is the extreme end of the heat-resistant range. Its heat deflection temperature reaches 270 °C at 0.455 MPa and its flexural modulus is 7,240 MPa — stiff enough to hold shape under heavy load and hot enough for injection-mould inserts. This is not a hobby resin; it is tooling material.

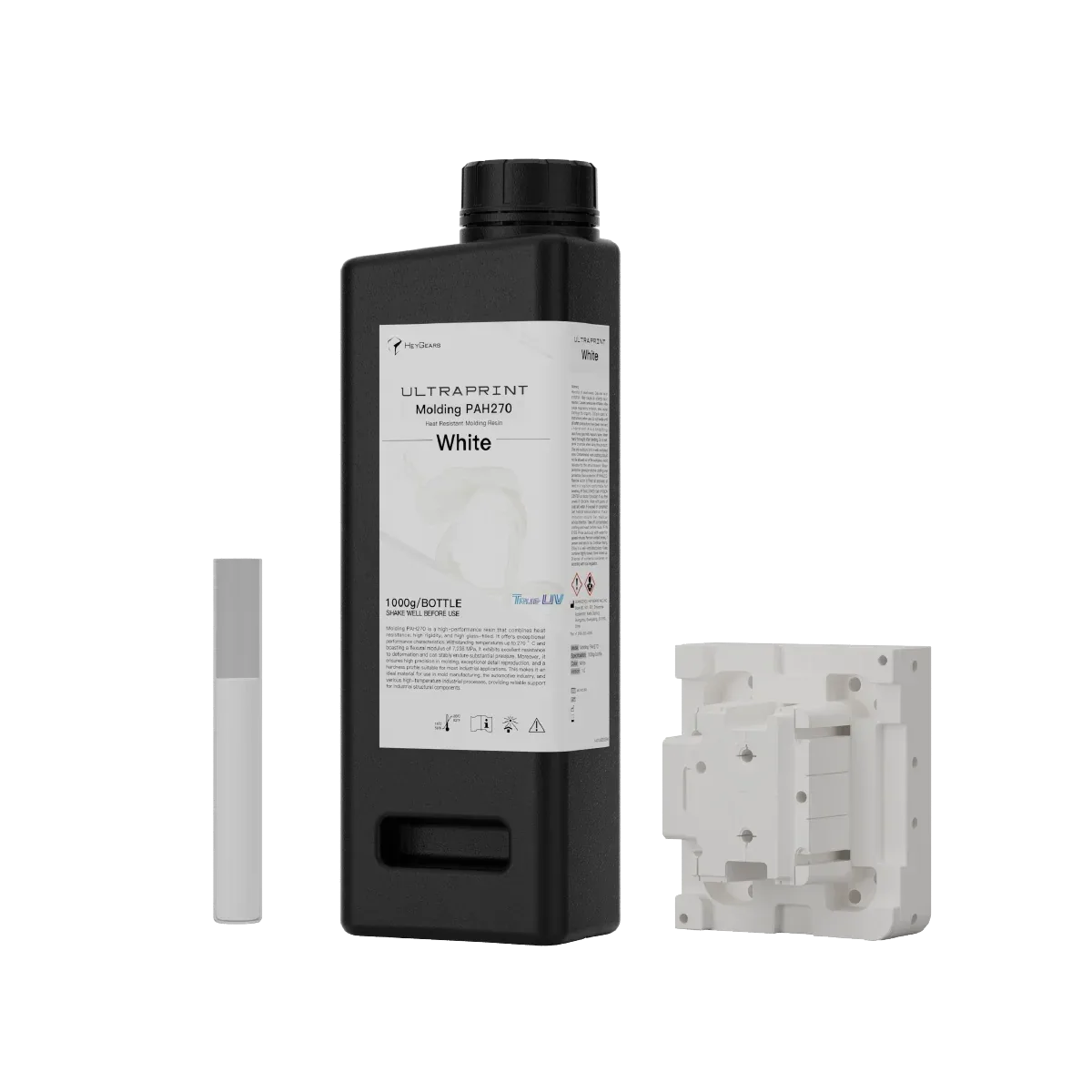

HeyGears UltraPrint-Molding PAH270 white high-temperature resin bottle

Who is it for?

  • High-temperature injection mould inserts for short-run tooling.
  • Jigs and fixtures used near heat or under continuous load.
  • Industrial parts where deformation is not an option.
  • Engineering validation of hot-side components before cutting steel.

Why people choose it

  • Heat deflection temperature 270 °C at 0.455 MPa.
  • Flexural modulus 7,240 MPa – very high stiffness.
  • Resists deformation under heavy loads.
  • Scratch resistant surface.
  • Requires the Pulsing Release Module 2 kit.

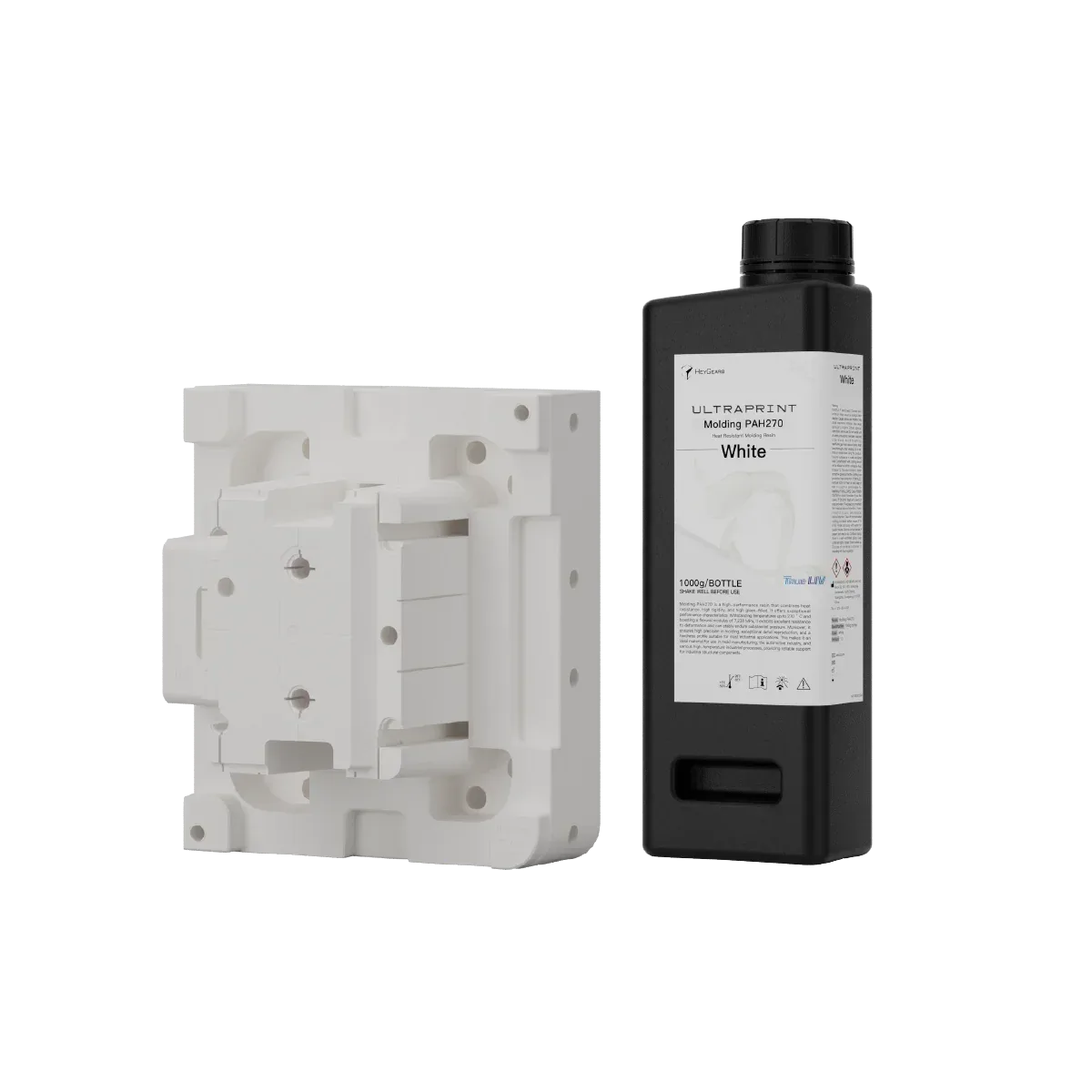

PAH270 high-stiffness high-temperature resin from HeyGears

Which printers can use it?

UltraCraft Reflex, Reflex Turbo, Reflex 2, Reflex 2 Pro This resin requires the Pulsing Release Module kit — it will not print reliably without it.

Good to know before you print

  • Shake the bottle well before pouring; pigment settles.
  • Wash in 95% IPA, then UV-cure. Short, even cure times keep fine detail from going chalky.
  • Store closed, upright, dark and dry at room temperature.
  • Wear nitrile gloves and work in a ventilated space while the resin is liquid.

See it in action

Genuine HeyGears material. Sold by Print My Design — authorised dealer, ships from Bangkok.

FAQ

Common questions

Which HeyGears printers can I use it with?

It is officially supported on UltraCraft Reflex, Reflex Turbo, Reflex 2, Reflex 2 Pro. This resin requires the Pulsing Release Module kit — it will not print reliably without it.

Is 270 °C really achievable?

That figure is the heat deflection temperature measured at 0.455 MPa, which is the standard low-load HDT test. It means the part keeps its shape at very high temperature under light load — ideal for mould inserts and hot-side fixtures. Under heavy mechanical load the usable temperature will be lower, so validate your own case.

Which module does it need?

PAH270 requires the Pulsing Release Module 2 kit specifically, not the original module. If you are unsure which version your Reflex is fitted with, send us your printer model and we will check before you order.

How do I wash and cure it?

Wash in 95% IPA — about 2 minutes rough wash plus 1 minute fine wash in an UltraCraft Wash at 180 r/min — then dry-cure for roughly 30 minutes in an UltraCraft Cure. Short, even curing keeps fine detail from going chalky.

How should I store it, and is it safe to handle?

Keep the bottle closed, upright, dark and dry at room temperature, and shake it well before every pour because the pigment settles. Unopened bottles keep for about 12 months from the production date on the label. Liquid resin irritates skin, so wear nitrile gloves and eye protection and work in a ventilated space. Fully cured parts are safe to handle.
